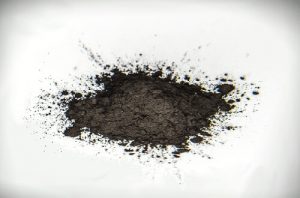

46% chromite powder 140-270 mesh 150-300 mesh chrome ore powder for powder metallurgy
Chromite foundry sand, Originally from South Africa (SAMANCOR),is a special kind of sand for casting , chromite sand is a natural spinel mainly composed of chromite ,
Chromite foundry sand used as a highly fireproof sharpener for moulds and cores. also popular to produce chromite-based stuffing sand for ladle.
Chrome ore sand,It’s main chemical composition is Cr2O3, This kind of sand heating volume is stable , High thermal conductivity , sand molten metal contact , not only has a good alkali slag resistance , not with iron oxide and other chemical reaction , and itself has the characteristics of solid phase sintering , can well prevent the penetration of molten metal , avoid sand defects .
| Chemical Properties | |
| Item | Index % |
| Cr2O3 | 46.0min |
| SiO2 | 1.0max |
| FeO | 26.5max |
| CaO | 0.30max |
| MgO | 10.0max |
| Al2O3 | 15.5max |
| P | 0.003max |
| S | 0.003max |
| Cr/Fe | 1.55 / 1 |
| Physical Properties | |
| Bulk Density | 2.5-3 g/cm3 |
| Color | Black |
| PH | 7-9 |
| The amount of the acid | 2ML(MAX) |
| Percent Soil | 0.1% max |
| Percent Moisture | 0.1% max |
| The Sintered Point | 1600 C |
| Filling Density | 2.6 g/cm3 |
| Sintering Point | 1800 C min |
| Melting Temperature | 2180 C |
| Percentage of Free Acid Present in the Sand | 0 |
SIZE OF Chromite sand foundry
Available Size: AFS35-40, AFS40-45, AFS45-50, AFS45-55,AFS50-55, AFS55-60, AFS60-65
Application of Chromite sand foundry
Chromite sand foundry is used as a highly fireproof sharpener for moulds and cores.
Chromite sand foundry is suitable for all kinds of molding (core-making ) sand, stainless steel , Alloy steel and carbon steel gradually modeling core sand and paint .
Chromite Powder size: 200 mesh, 325 mesh, 400 mesh, 600 mesh, 800 mesh, 2000 mesh
Typical uses of chromite powder
Colorants for the glass industry
Pigments for the ceramic industry
Casting paint additives
Brake pad friction material
